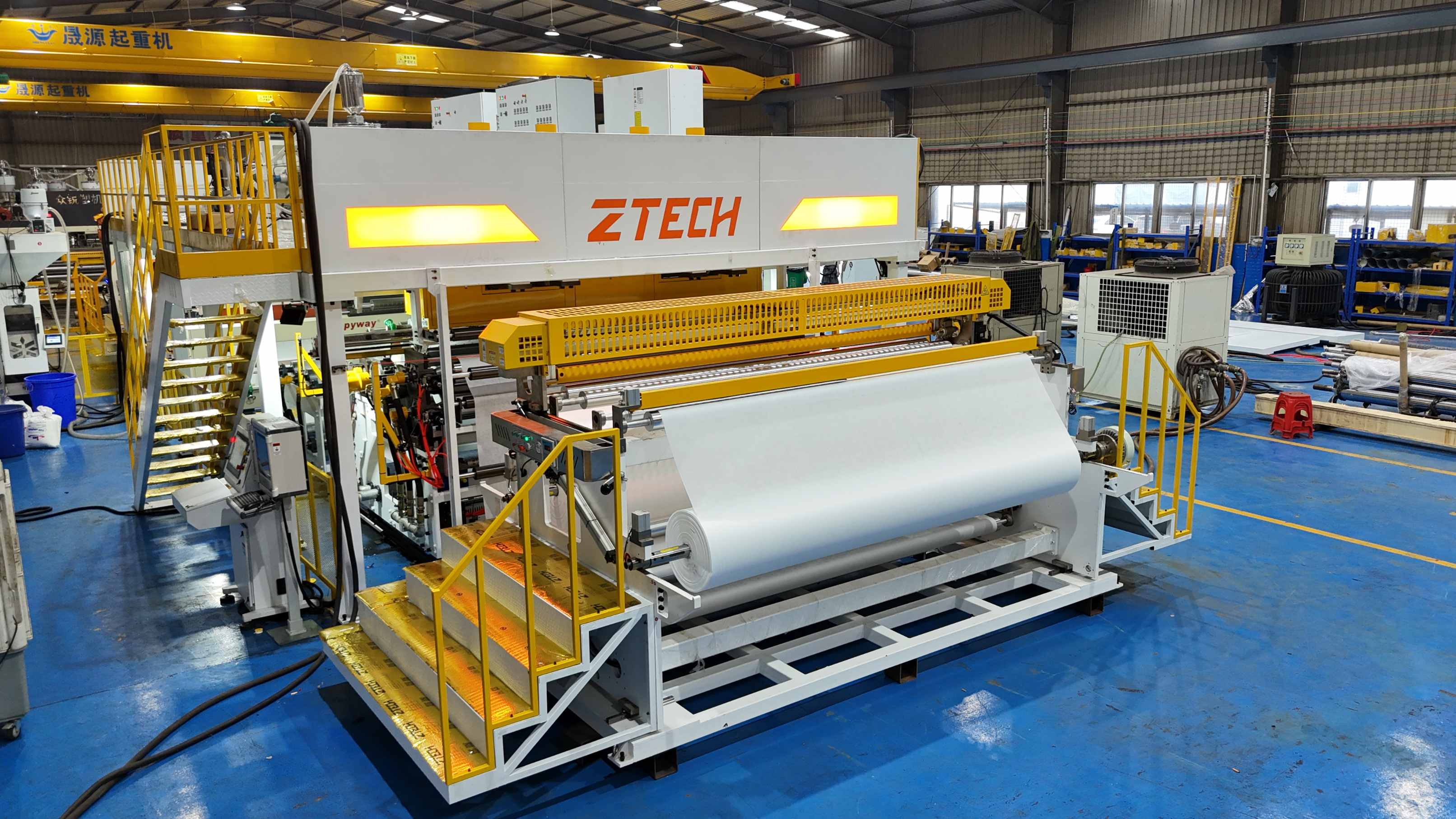

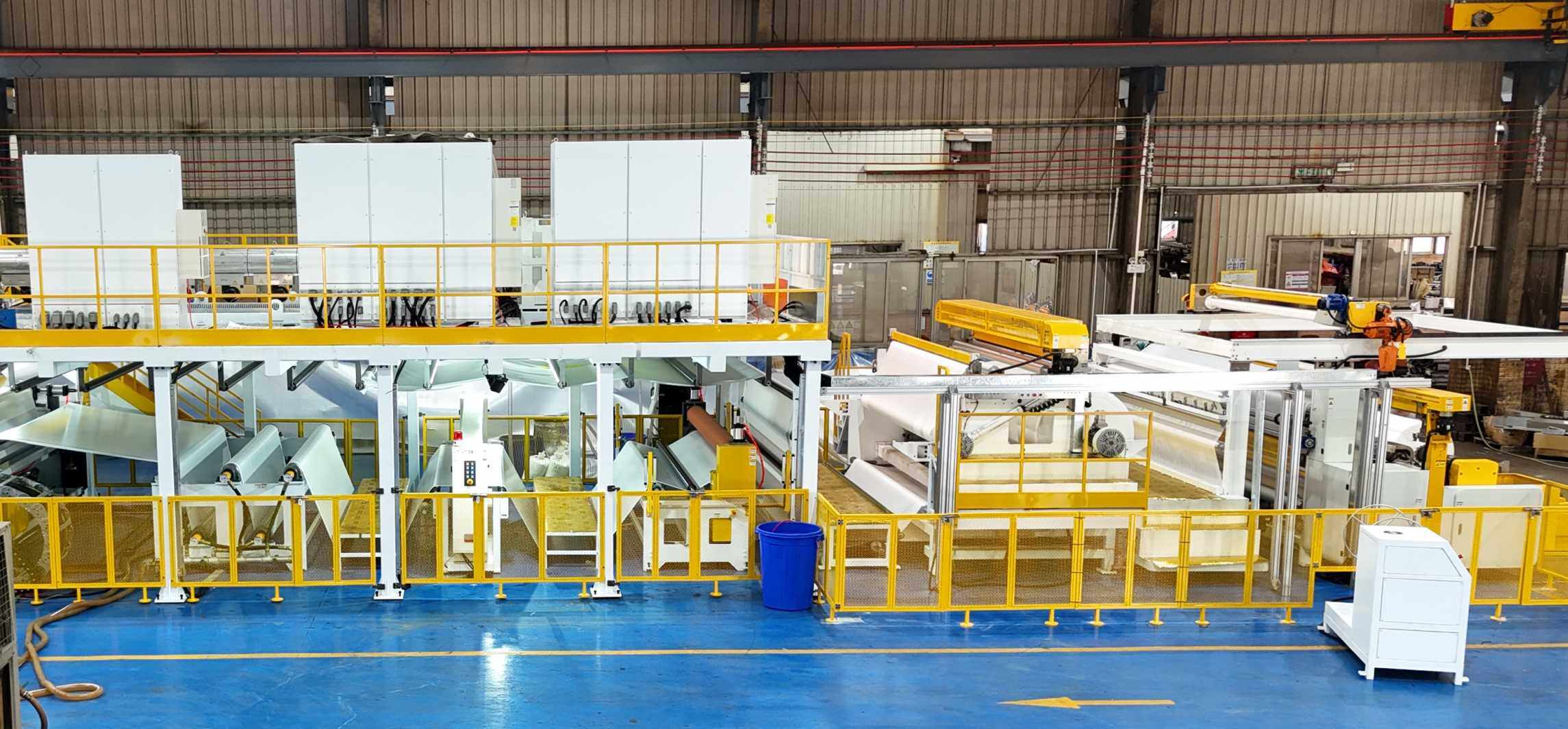

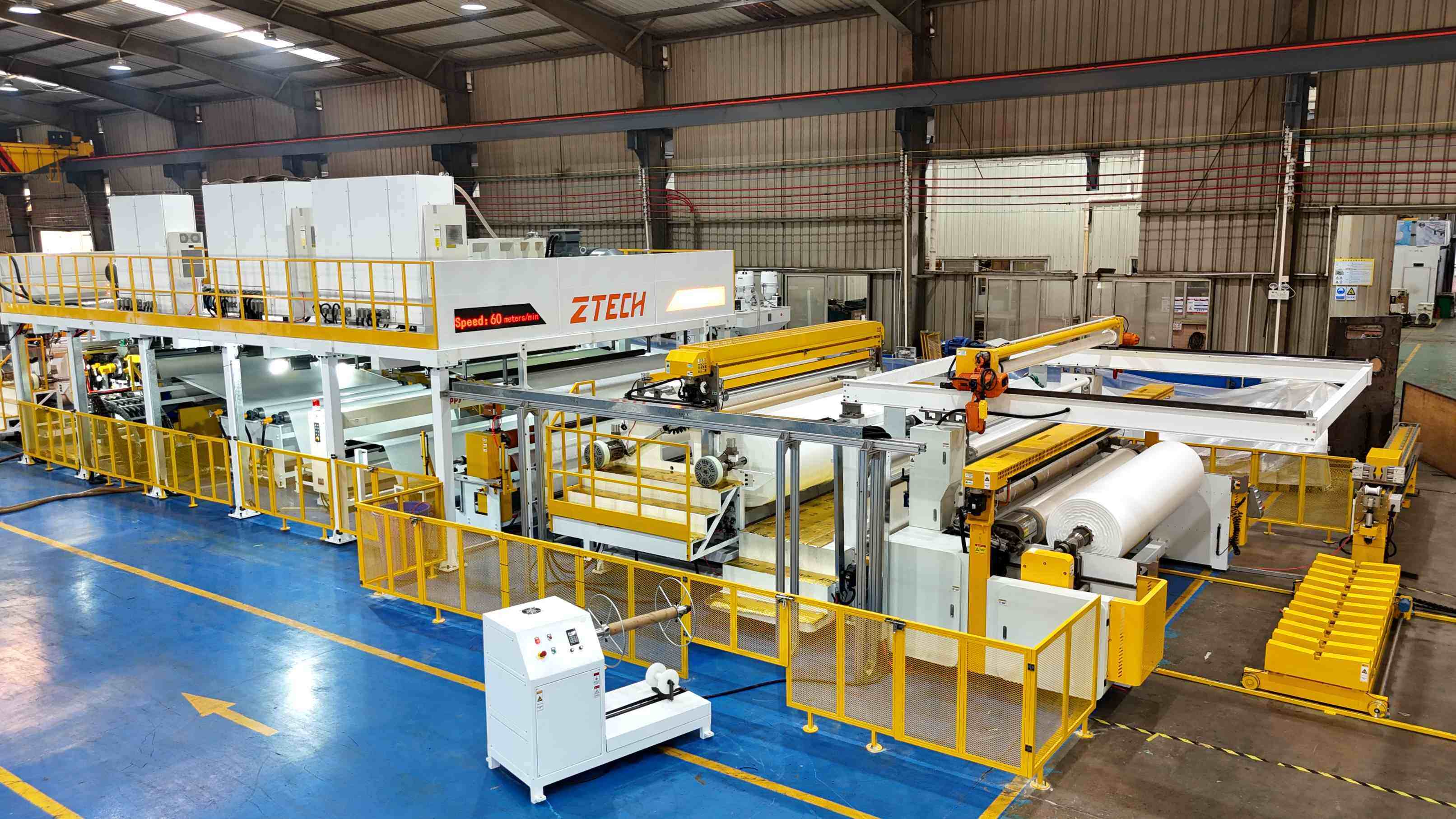

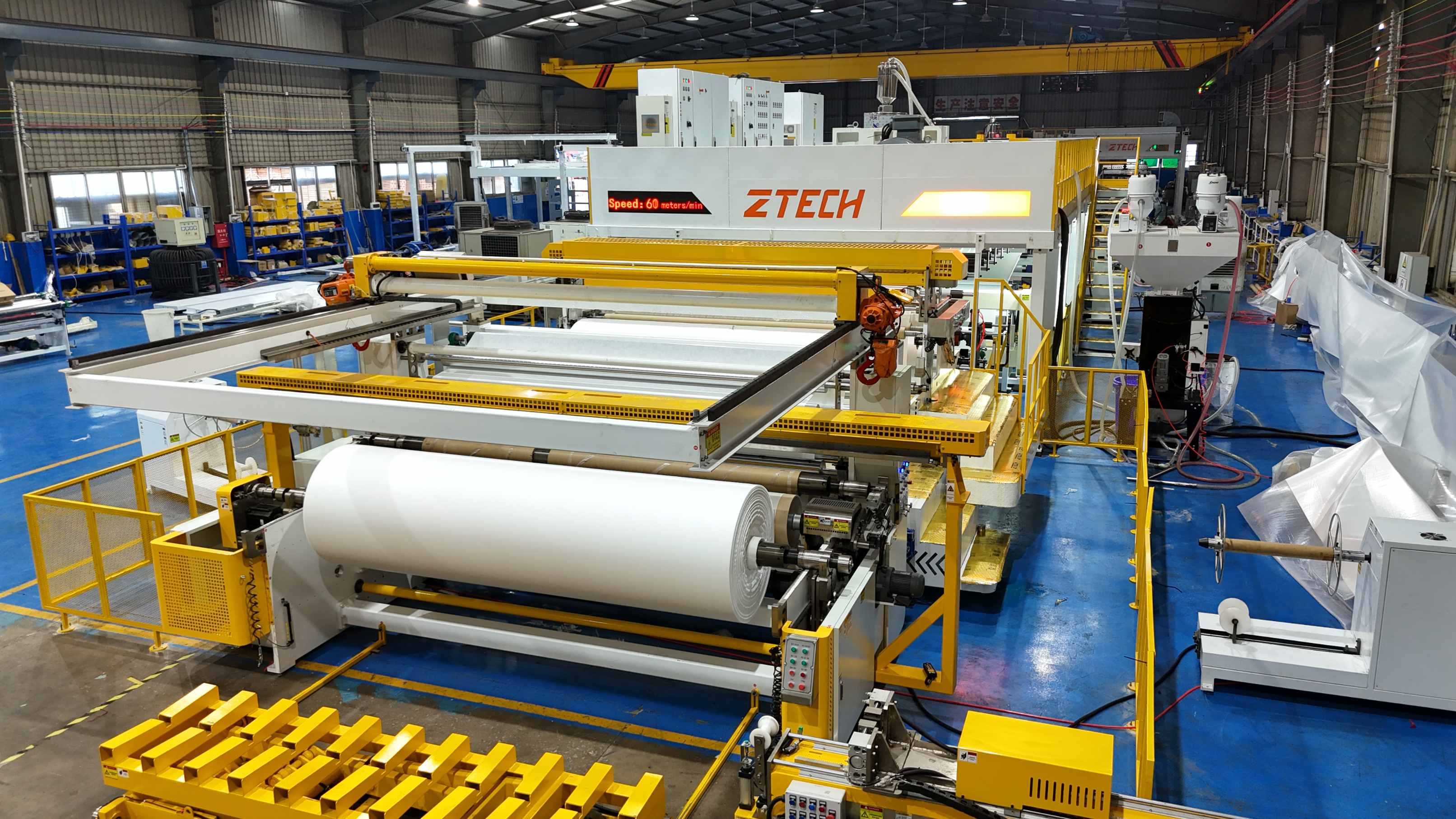

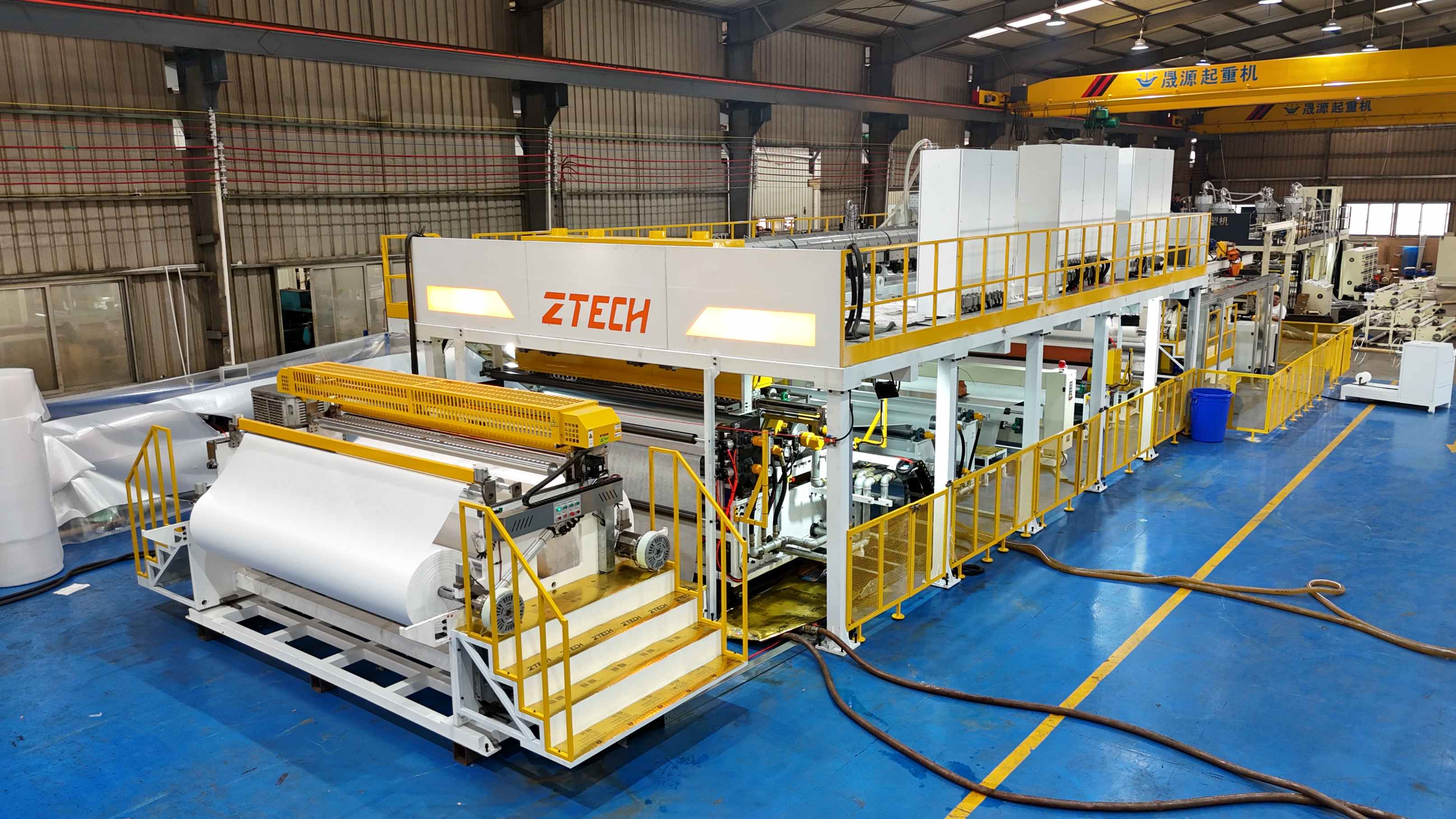

PE Film Extrusion Laminating Machine



Description
Applicable to extrusion plastic stretch film and non-woven fabrics, woven cloth, paper and other materials, single layer film and with other materials such as base material such as OPP film, other materials such as film, PET film aluminum film composite.

Scope of application: can be used for paper-plastic composite, plastic composite, lu: su composite paper, non-woven aluminum film, lu: su composite, etc., widely used in food packaging, pharmaceutical packaging, shoes materials, package materials and other industries and fields



Application

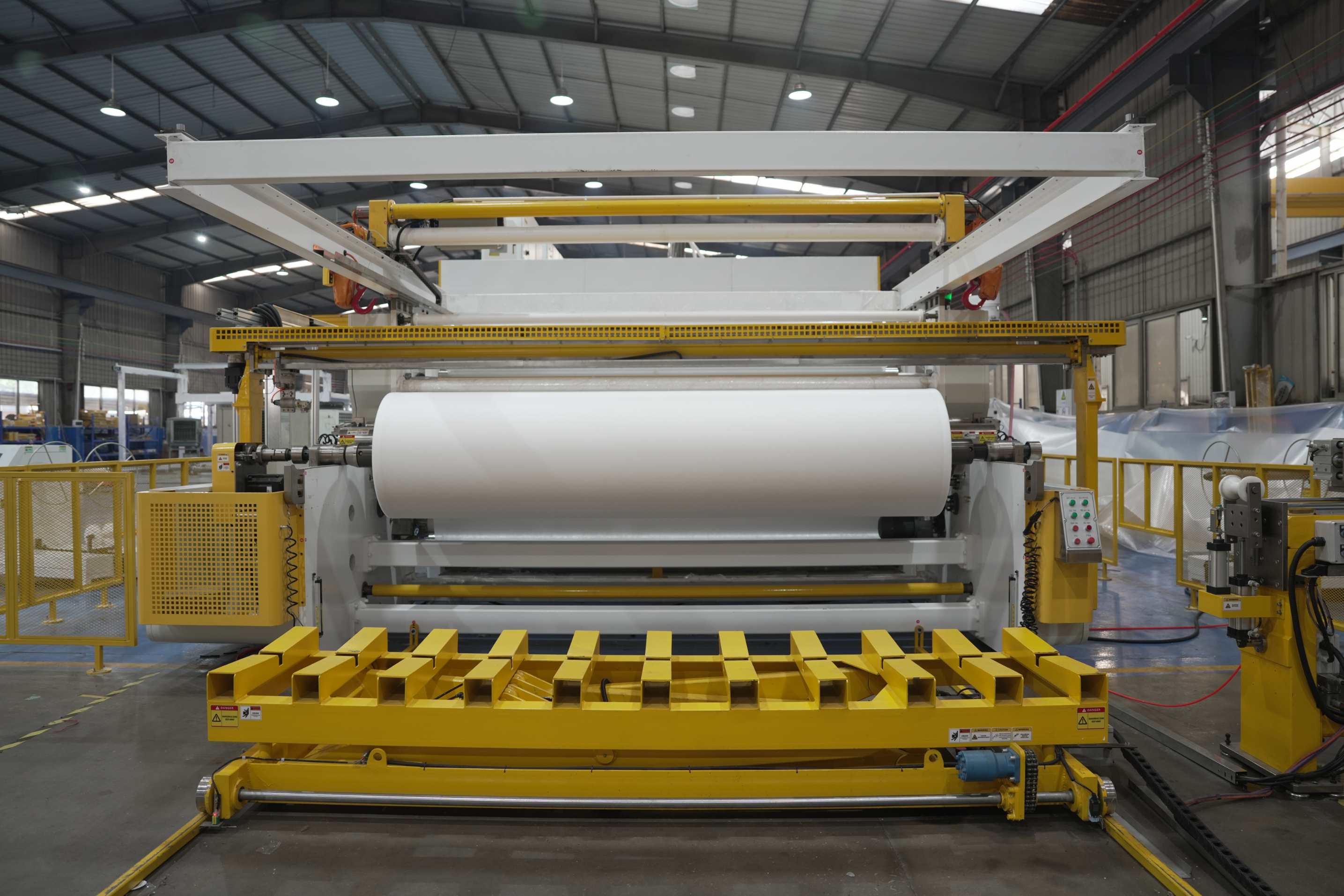

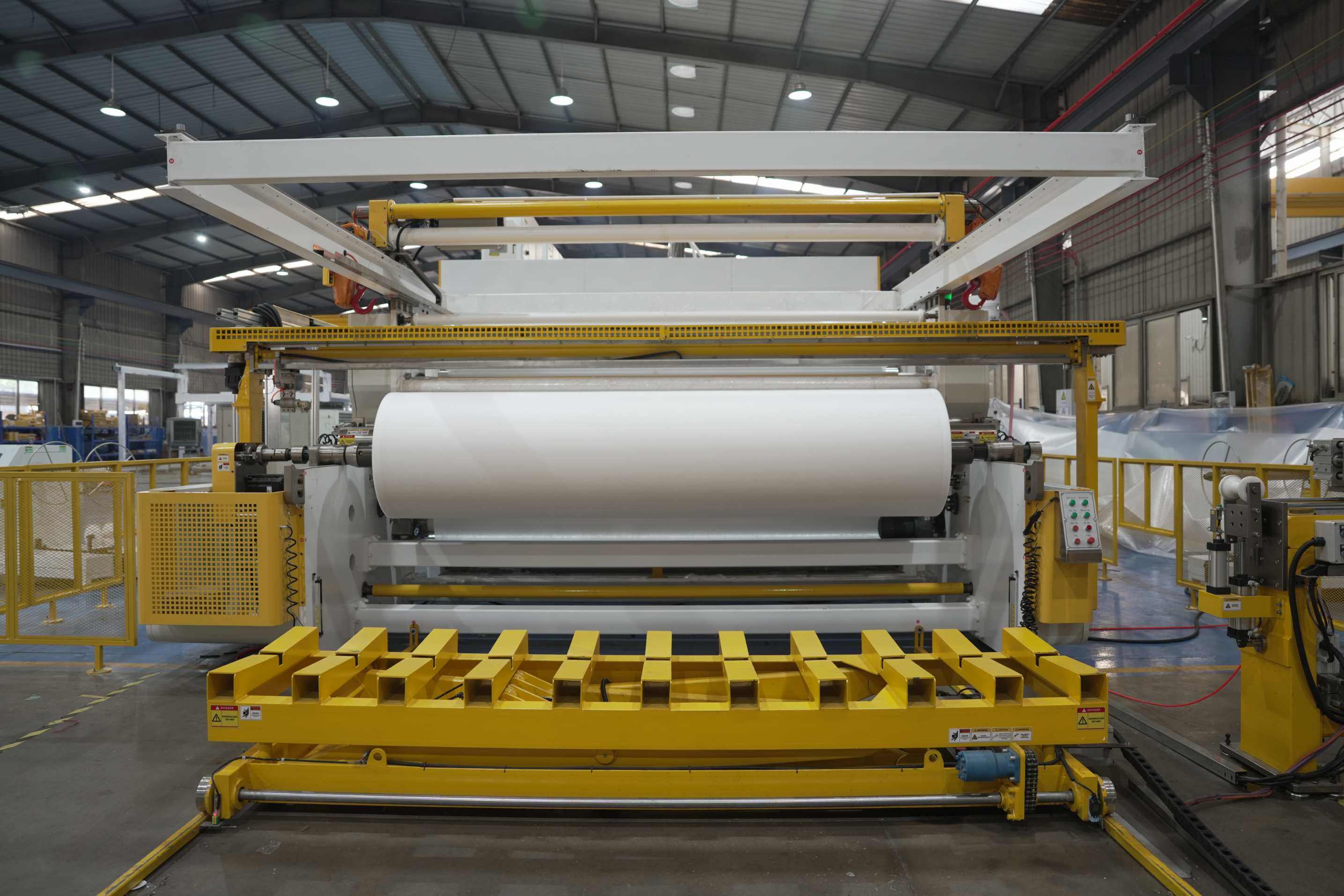

1) Made up of plastic extruder, T die, first unwinder, embossing unit,second unwinder, edge trim unit, slitting system, automatic rewinder, etc.

2) Friction roll rewinding, or double-station turret rewinding, roll pre-rewinding device and single or double side laminating machine for choice.

3) Running for 24 hours, and change rolls automatically without stop, production speed can be 30-100/min.

4) Laminating PE, EVA, PP, TPU with paper,plastic film, non-woven, fabric or aluminum foil into double layer, three layers or multi-layers products.

5) Product are used as packing products for cement, chemicals, forage, food, medicine, adhesive tape, PE coated paper cups and fast food boxes,etc





Features
1, high precision T know the real situation, finishing guarantee film uniformity.

2, high-speed and efficient mixing screw (Germany technology)

3, independent design pneumatic fast in network, operation is simple and no leakage material, 360 degrees of the second lap

4, the machine can use monotone or PLC man-machine interface centralized control, mechanical and electrical integration design

5, winding and rolling parts according to customer different request separate design, fully meet the customers' different requirements

6, can match single extruder, twin extruder, extruder, multi-layer co-extrusion



Technical Parameters

Model	Dimension	Power	Max Processing Width	Processing Speed
	(m)	(kw)	(mm)	(m/min)
ZT-PCF1600	18*7*3	50	1600	50-100
ZT-PCF1800	18*8*3	65	1800	50-100
ZT-PCF2000	18*9*3	80	2000	50-100
ZT-PCF2200	18*10*3	95	2200	50-100
